By TEIKOKU
Supplier Info
Product Type:
Equipment
Application:
(De-)Taping, Mounting, Curing
Product Description:

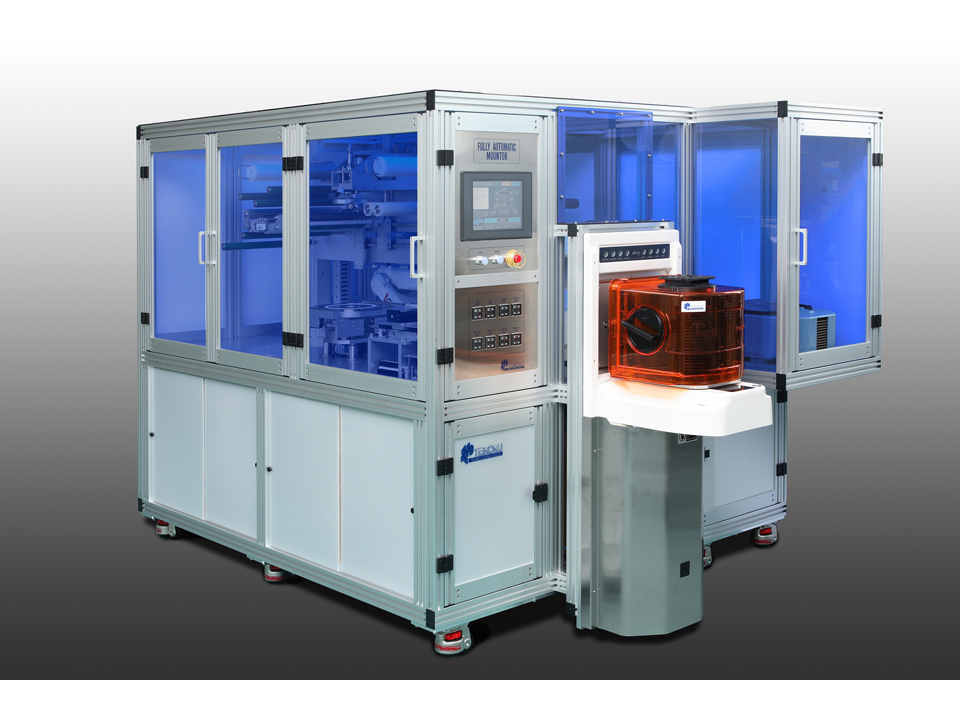

- Wafer tape mounting for 300mm / 12 inch wafer (optionally available: 200mm / 8 inch wafer)
- Parameters for attaching a wafer onto a frame can be controlled in the recipe
- Also suitable for ultra-thin wafers (such as shaped or reworked wafers)
- Inline UV irradiation and BG de-taping features available (optional)
- Longer-lasting UV lamp realized by TTS’s proprietary UV technology
- Several features are available
| Power: | AC200-240V |
| Single Phase Power Consumption: | 2KVA (without UV) / 3KVA (with UV) |
| Clean Air Pressure (CDA): | 0.5 – 0.6 MPa (Min Flow Rate: 120NL/min) |
| Vacuum | 650 – 750mm Hg (Min Flow Rate: 60NL/min) |
| Nitrogen (for UV) | 0.2 – 0.4 MPa (Min Flow Rate: 20NL/min) |
| Exhaust Duct Capacity | 1.0m3/min, 10mmH20 (100mm diameter SUS Flange duct connection) |
System Arrangement
| Dimension (WxDxH) | 1900×2500×1900mm |
| Net Weight | Appx 1800Kg |
