Product Type:
Equipment
Application:
(De-)Taping, Mounting, Curing
Product Description:

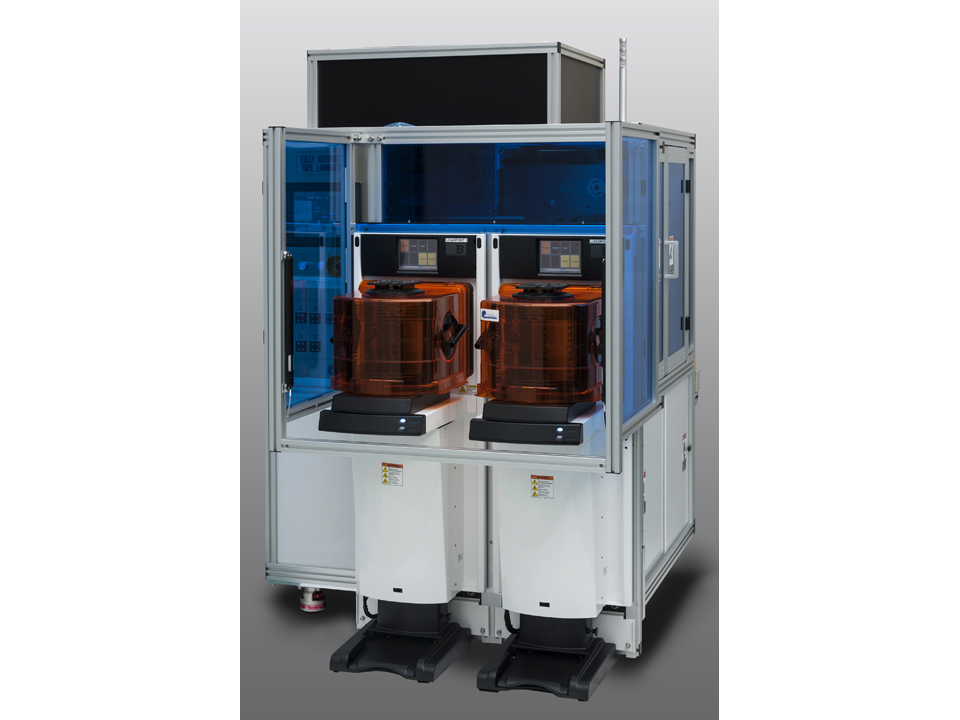

- Tape lamination for 300mm wafers (optionally available: 8 inches)
- Single and double cassette loading
- Two cutting methods (V-notch cutting): digital cutter blade method and class 4 CO2 laser method.
Laser Cutting with heating roller and table and Digitally adjustable high pressure performance. - Parameters for taping can be controlled in the recipe
- Also suitable for thinner wafers (such as shaped or reworked wafers)
- Several features are available
Machine Utilities
| Power: | AC200-240V, Single Phase |
| Power Consumption: | 3KVA |
| Clean Air Pressure (CDA): | 0.5 – 0.6 MPa (Min Flow Rate: 120NL/min) |
| Vacuum | 650 – 750mm Hg (Min Flow Rate: 60NL/min) |
| Exhaust Duct Capacity | 5.0m 3/min, 40mm H20 (100mm diameter SUS Flange duct connection) |
System Arrangement
| Dimension (WxDxH) | 1350×1750×2200mm |
| Net Weight | Appx 1000Kg |
There are currently no downloads available.
Laser Cutting with heating roller and table and Digitally adjustable high pressure performance designed for Bumping, wafer level CSP manufacturing and special MEMS manufacturing process.
