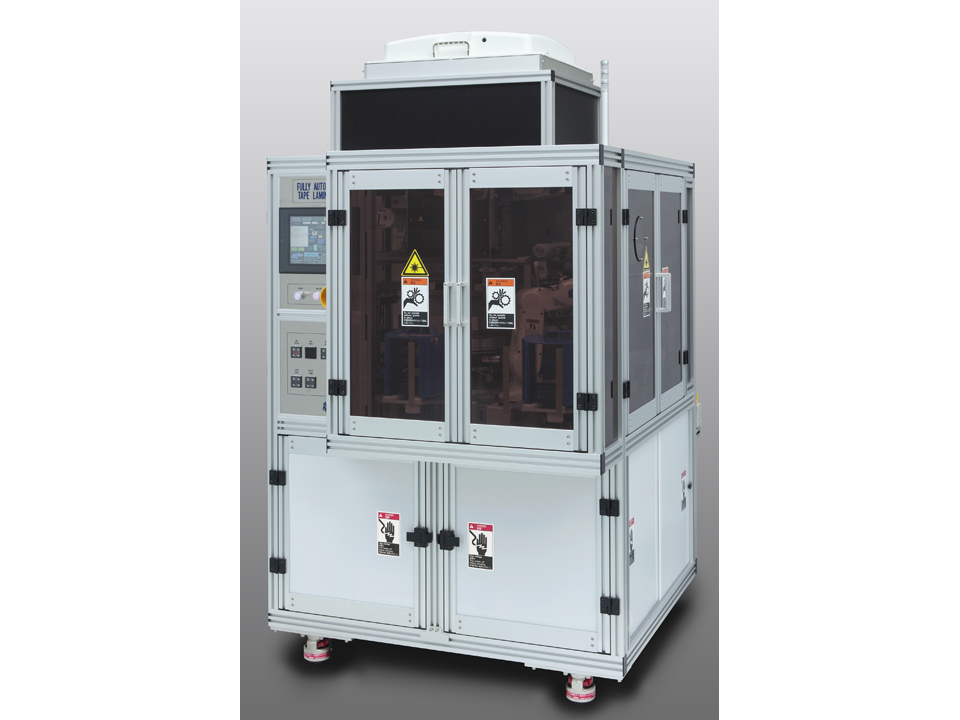

DXL2-800CS-LSR-CE
The Fully Automatic 200mm Wafer Laminator system TTS Model: DXL2-800CS-LSR-CE series is a Machine for Fully Automatic 200mm wafer to wafer or substrate Laminator with using New Generation Laser Cutting technology for almost kind of BG tape or sticky UV tape, which has double sided separator or either single sided separator as well.
Laser Cutting with heating roller and table and Digitally adjustable high pressure performance designed for Bumping, wafer level CSP manufacturing and special MEMS manufacturing process. TTS’s unique worldwide patented laser cutting system provides maintenance free and accurate BG Tapes and lamination without wafer damage, and notch shaped wafer can be processed.The model DXL2-800CS-LSR-CE is designed to apply single and double sided separator conversion by touch panel selection easily.
System Basic Concept and features
1. High Performance Lamination with double or single separator Tape
2. Applicable up to 200mm size wafer damage free and wafer holding with Good Accuracy Heater
3. Easy tape setting for the air chucking system.
4. Perfect safety features by using both the cover inter-locking system and Optical Area sensors.
5. The wide LCD Full color touch panel leads operator’s easy operation.
6. Fully digitally controlled Laminate Roller & Process Controller applicable for accurate and secured lamination for active wafer surface.
7. Adjustable Digitally controlled Laminate pressure roller and table temperature assumes wider range for almost kind of BG Tape laminating.
Machine Utilities
| Power: | AC200-240V, Single Phase |
| Power Consumption: | 3KVA |
| Compressed Air: | 0.55 MPa (79PSI) (Min Flow Rate: 120NL/min) |
| Vacuum | 650mm Hg (Min Flow Rate: 60NL/min) |
System Arrangemen
| Dimension (WxDxH) | 1250×1400mmx2200mm |
| Net Weight | Appx 800Kg |
| Equipment Safety Standard | CE Compliant, S2-2000 certified, FDA Certificate (USA Law) |
