By TEIKOKU
Supplier Info
Product Type:
Equipment
Application:
(De-)Taping, Mounting, Curing
Product Description:

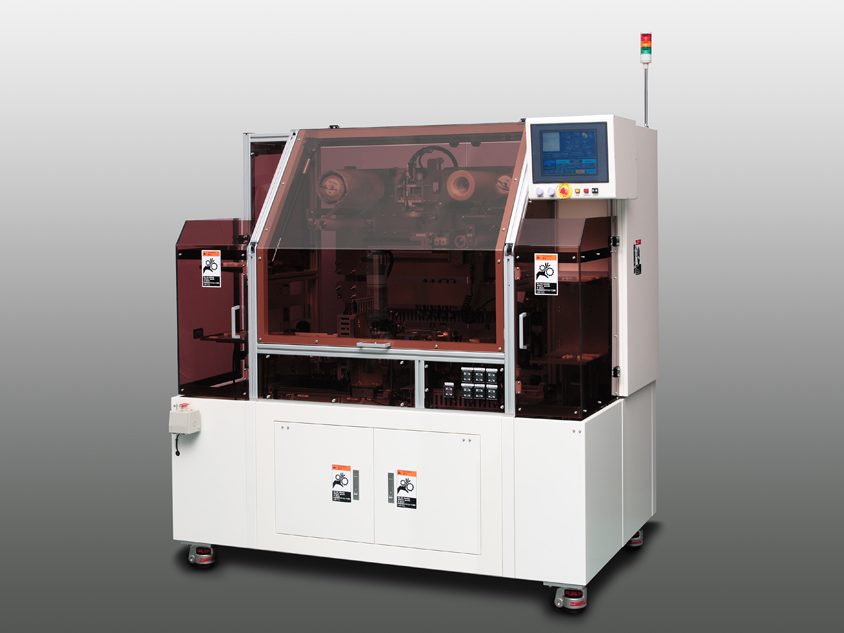

- A wafer mounter for wafers up to 200mm (8 inches) (4-, 5-, 6-, and 8-inch)
- Parameters for attachment can be controlled in the recipe.
- Can be used with thinner/ bumpy wafers.
- Several features are available.
The semi-automatic model is also available. Please contact us for details.
| Power: | AC200-240V, Single Phase |
| Power Consumption: | 2KVA |
| Clean Air Pressure (CDA): | 0.5 – 0.6 MPa (Min Flow Rate: 120NL/min) |
| Vacuum | 650 – 750mm Hg (Min Flow Rate: 60NL/min) |
| Exhaust Duct Capacity | 5.0m 3/min, 40mm H20 (100mm diameter SUS Flange duct connection) |
System Arrangement
| Dimension (WxDxH) | 1830×1050×1800mm |
| Net Weight | Appx 1000Kg |
There are currently no downloads available.
- Laser Cutting with heating roller and table and Digitally adjustable high pressure performance designed for Bumping, wafer level CSP manufacturing and special MEMS manufacturing process.
